Mild Steel Buckets

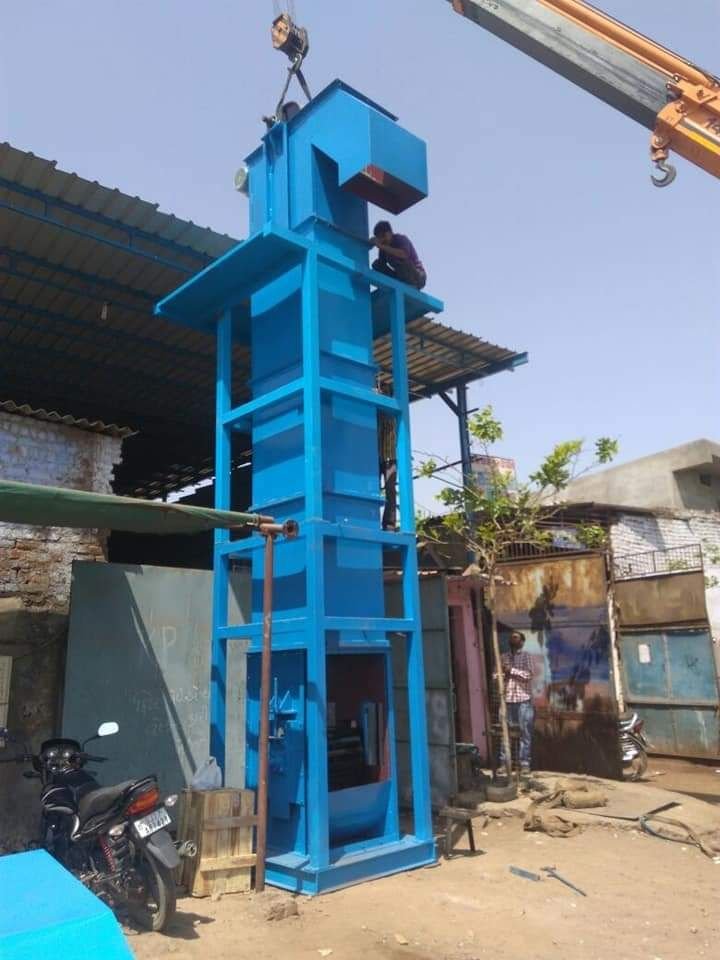

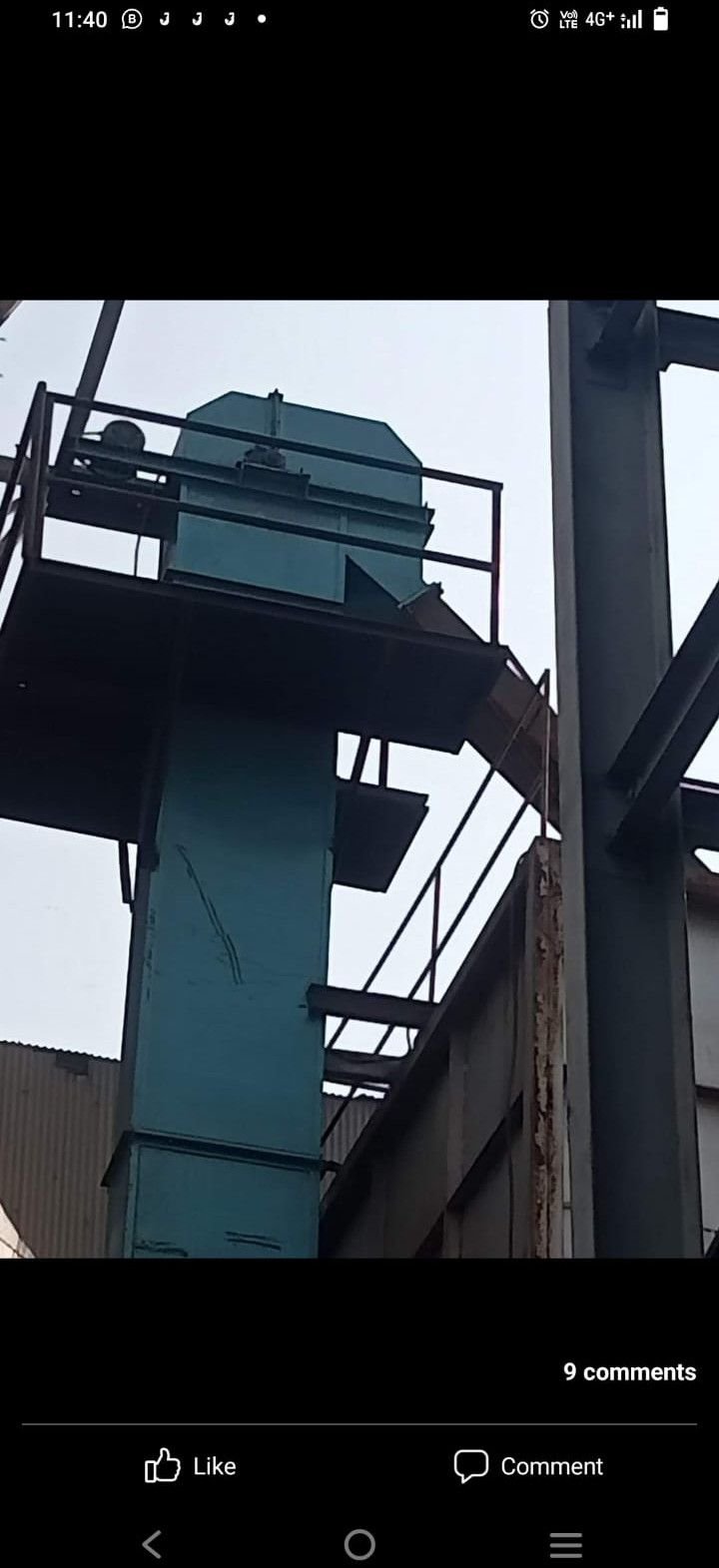

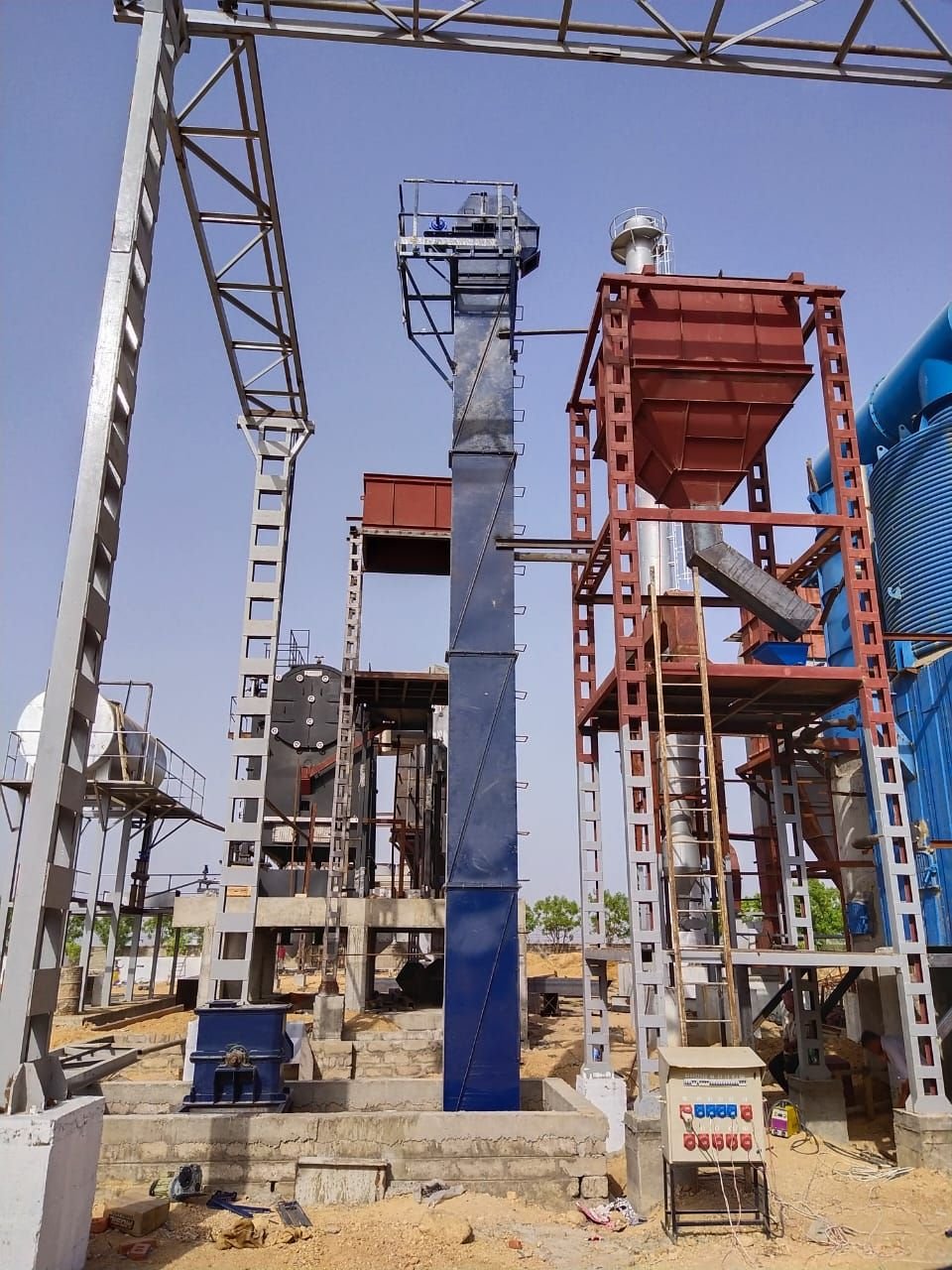

A Bucket Elevator is a vertical material handling system used to transport bulk materials (powder, granules, or lumps) from a lower level to a higher level efficiently. It consists of a series of buckets attached to a belt or chain that rotates around pulleys, lifting materials in a continuous flow.

Key Components



• Buckets: Carry the material (made of steel, plastic, or nylon)


• Belt or Chain: Moves the buckets vertically


• Head Section: Top part containing the drive motor and pulley

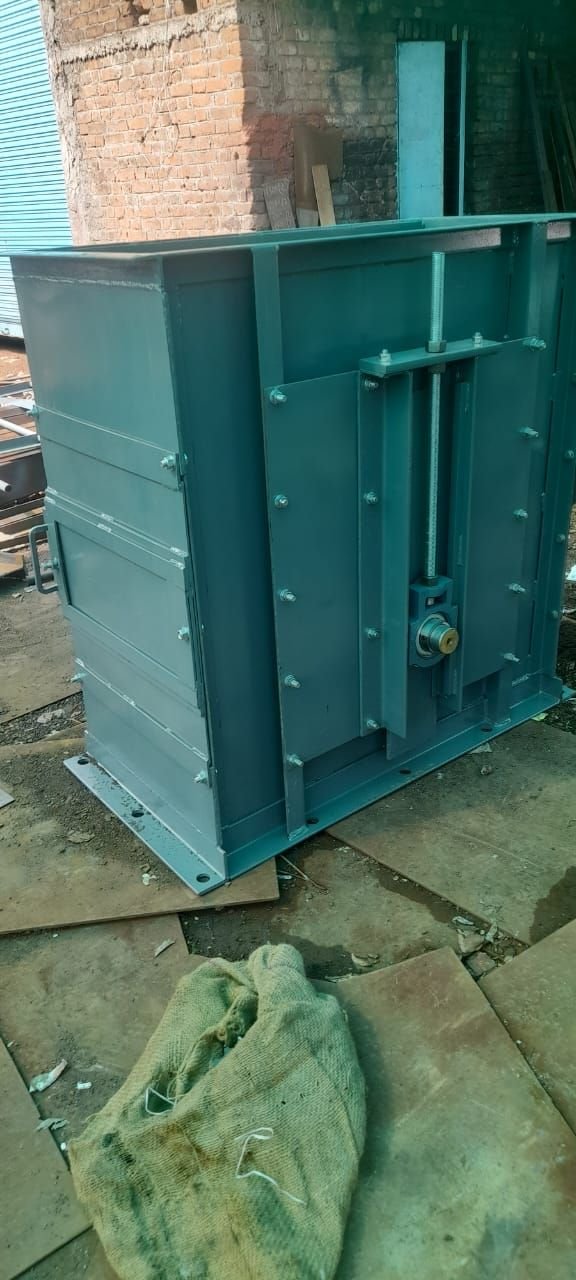

• Boot Section: Bottom part where material is loaded


• Casing: Encloses the system for safety and dust control


• Drive Motor & Gearbox: Provides motion to the system

Working Principle

Material is fed into the boot section, where buckets scoop it up. As the belt or chain moves upward, the buckets carry the material to the head section, where it is discharged by centrifugal force or gravity into a chute. The empty buckets then return to the bottom for continuous operation.

Types of Bucket Elevators

• Centrifugal Discharge Elevator: High speed, suitable for free-flowing materials


• Continuous Elevator: Slow speed, used for fragile or abrasive materials


• Chain Bucket Elevator: Heavy-duty applications


• Belt Bucket Elevator: Smooth and efficient for light to medium loads

Applications



• Cement plants


• Food processing industries (grains, rice, flour)


• Fertilizer plants


• Mining and minerals


• Chemical industries



What is a Coal Crusher?

A coal crusher is a machine used to crush large coal lumps into smaller sizes suitable for handling, storage, or further processing. It is widely used in power plants, cement plants, coal handling plants, and mining industries.

 Types of Coal Crushers

1. Hammer Crusher



   • Uses high-speed rotating hammers


   • Best for medium hardness coal


   • Produces fine output






2. Roll Crusher (Double Roller Crusher)



   • Two rollers rotate in opposite directions


   • Suitable for controlled size output


   • Less dust generation






3. Jaw Crusher



   • Heavy-duty crushing


   • Used for primary crushing


   • Handles large coal lumps






4. Impact Crusher



   • Uses impact force


   • High reduction ratio


   • Good for uniform particle size





 Working Principle

• Coal is fed into the crusher through a hopper or feeder


• Crushing happens by impact, compression, or shear force


• The crushed coal passes through a screen or grate


• Output size depends on crusher type and setting

 Key Features

• High crushing efficiency


• Low power consumption


• Adjustable output size


• Heavy-duty construction


• Easy maintenance

 Applications

• Thermal power plants


• Cement industries


• Coal handling plants


• Mining operations


• Brick and steel industries

 Advantages

✔ Reduces coal size for better combustion
✔ Improves handling and transportation
✔ Minimizes wastage
✔ Increases plant efficiency

 Basic Specification (Example)

• Capacity: 5 TPH to 500 TPH


• Feed Size: Up to 1000 mm


• Output Size: 0–50 mm (adjustable)


• Motor Power: 5 HP to 200 HP

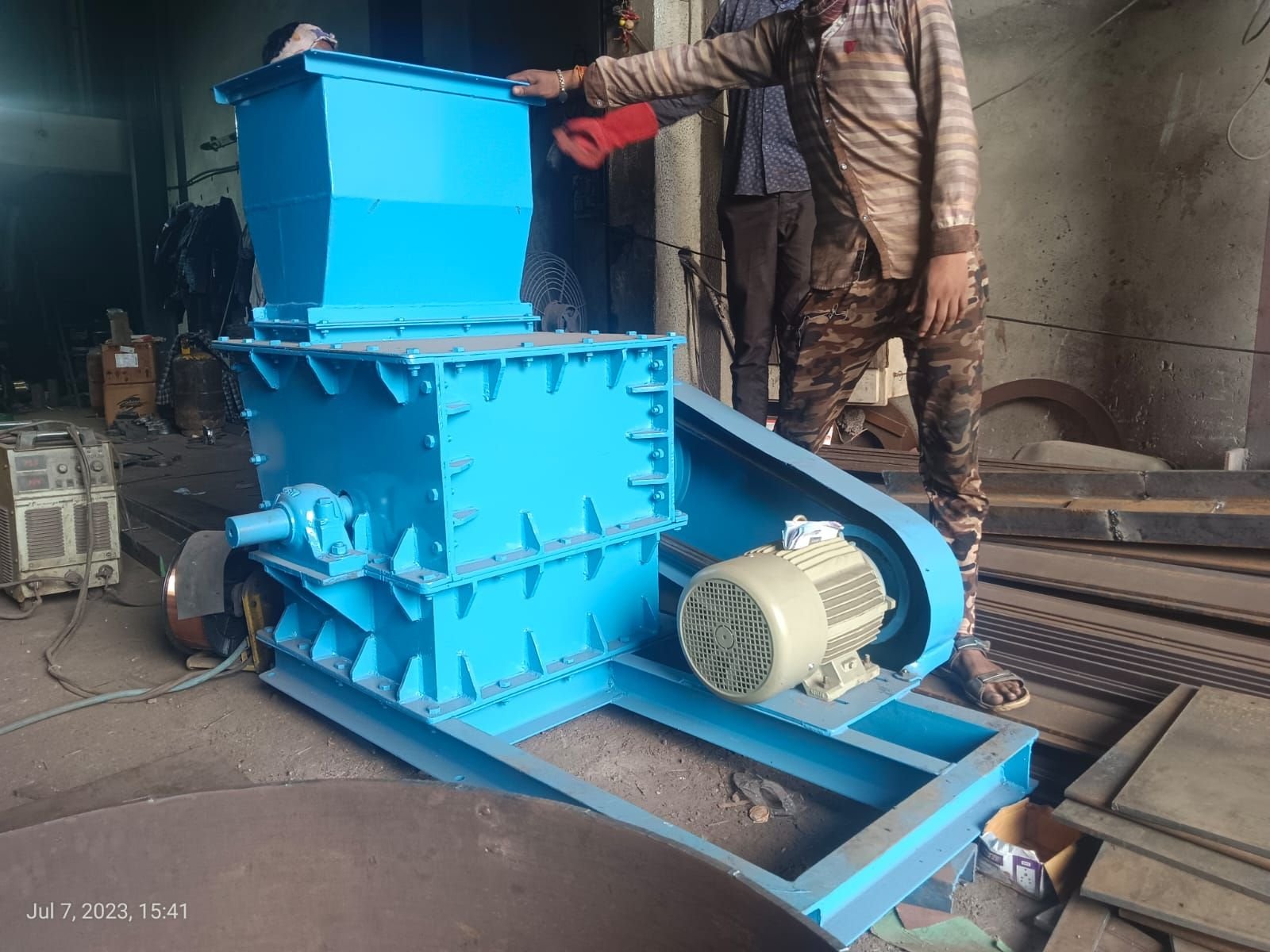

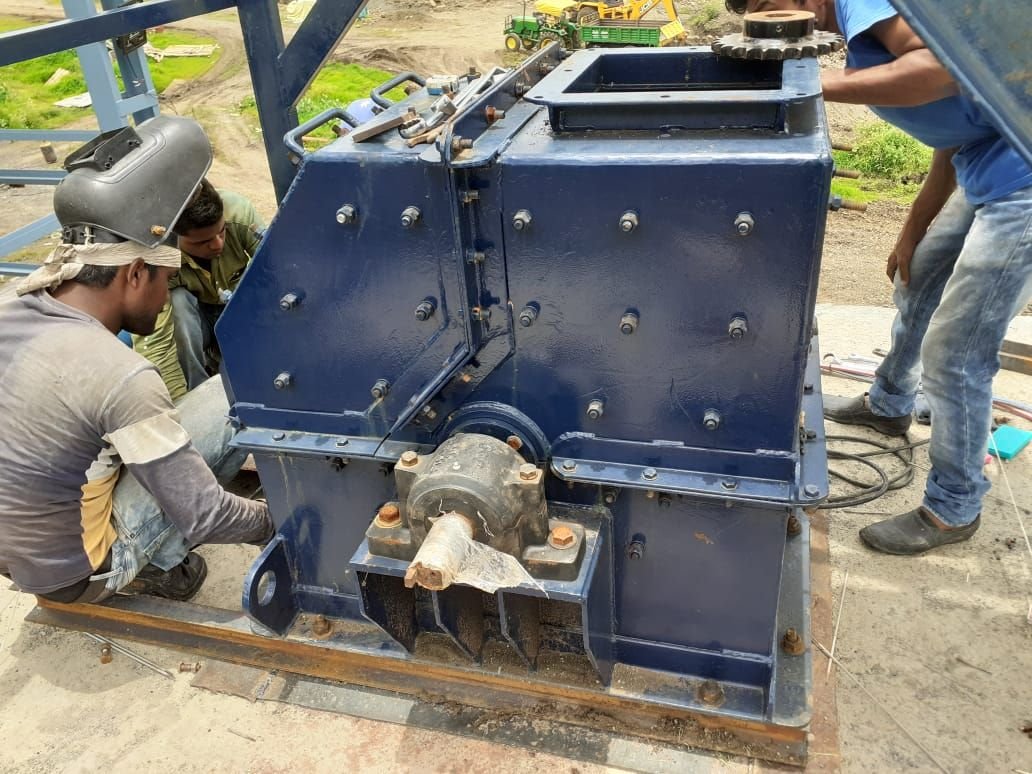

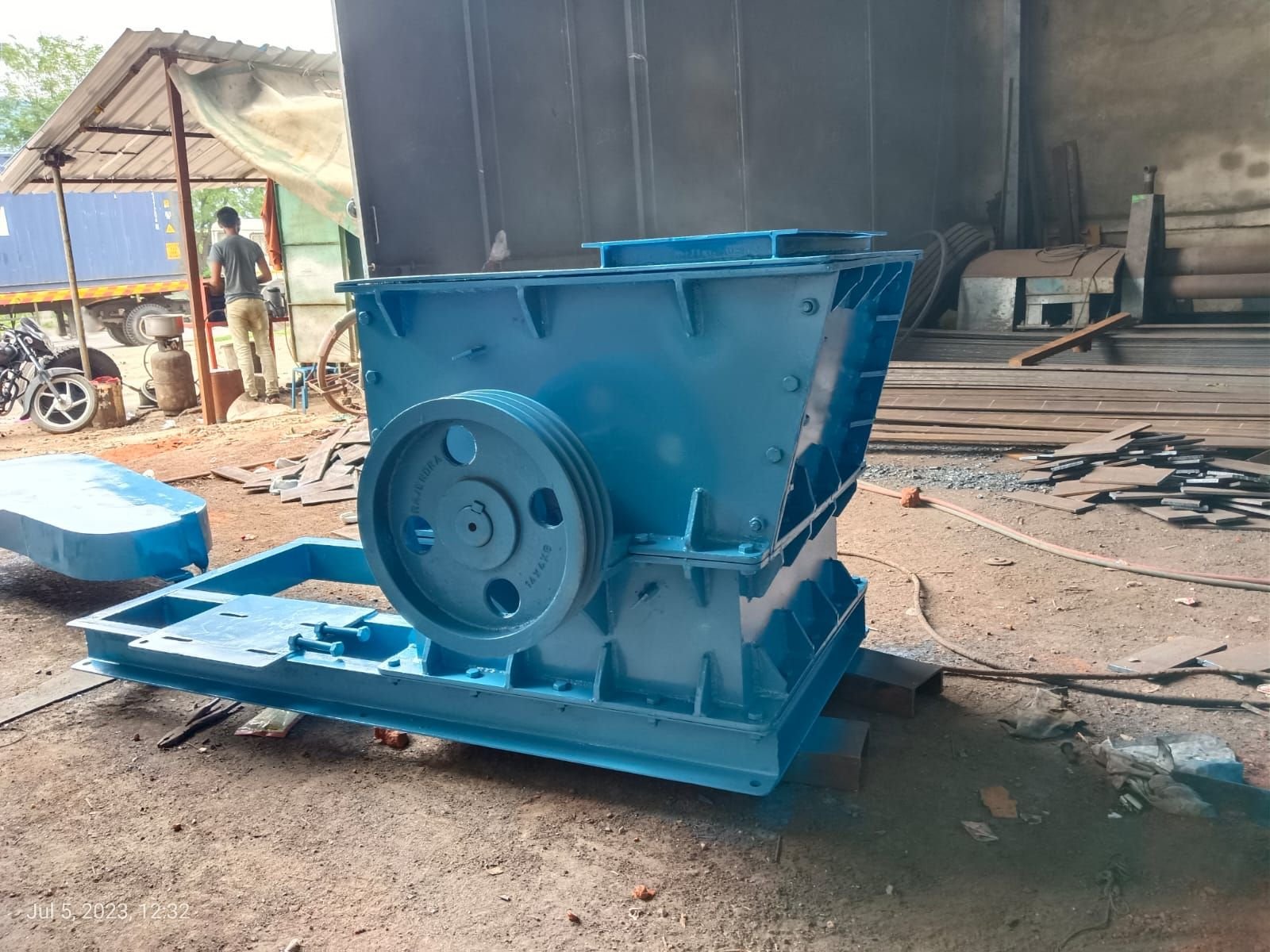

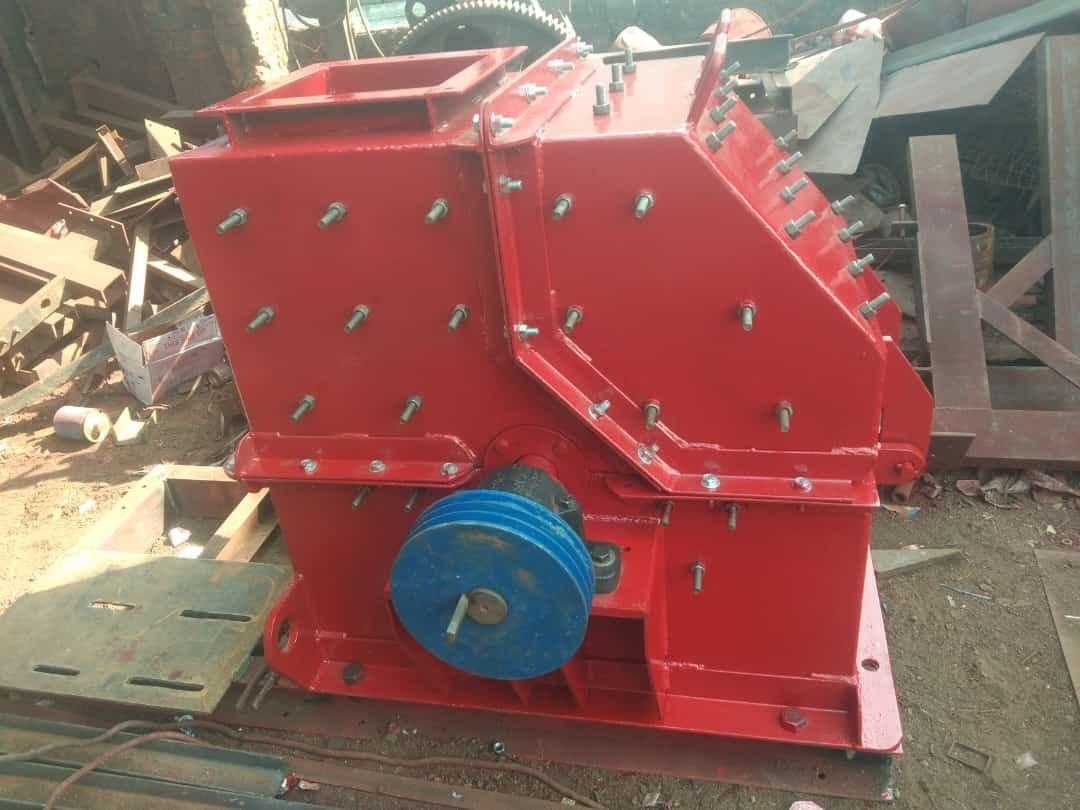

An industrial coal crusher is a heavy-duty machine used to break down large coal lumps into smaller, uniform sizes suitable for handling, transportation, and further processing. It plays a crucial role in industries such as power plants, cement plants, steel industries, and coal handling systems.

Working Principle



Coal is fed into the crusher through a hopper or conveyor system. Inside the machine, rotating hammers, rollers, or jaws apply force to crush the coal into smaller particles. The crushed material then passes through a screen or grate, ensuring consistent output size.

Types of Coal Crushers



• Hammer Crusher – Uses high-speed rotating hammers to crush coal


• Jaw Crusher – Breaks large coal pieces using compressive force


• Roll Crusher – Crushes coal between two rotating rollers


• Impact Crusher – Uses impact force for fine crushing

Applications



• Thermal power plants


• Cement manufacturing units


• Coal handling plants


• Mining and quarry industries

Benefits



• Improves fuel combustion efficiency


• Reduces transportation and handling costs


• Ensures uniform particle size


• Enhances overall plant productivity

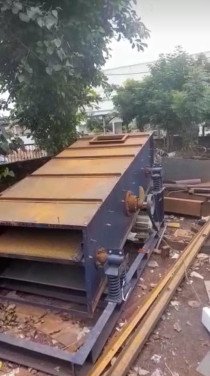

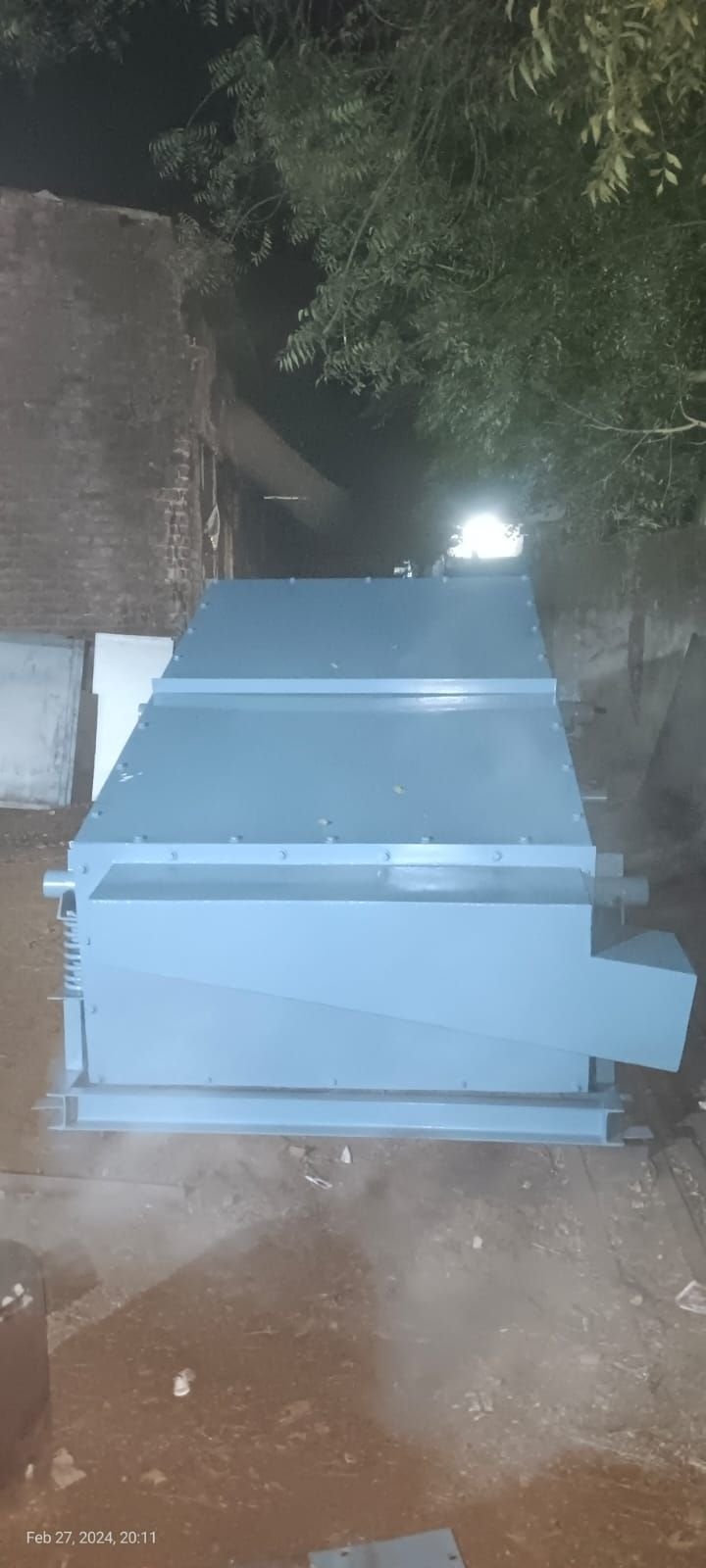

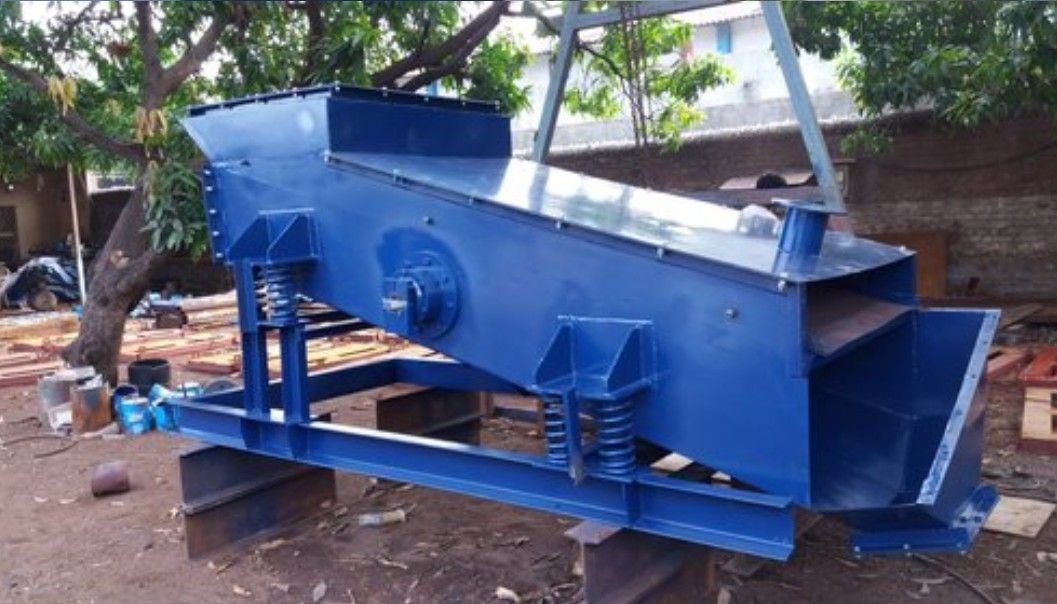

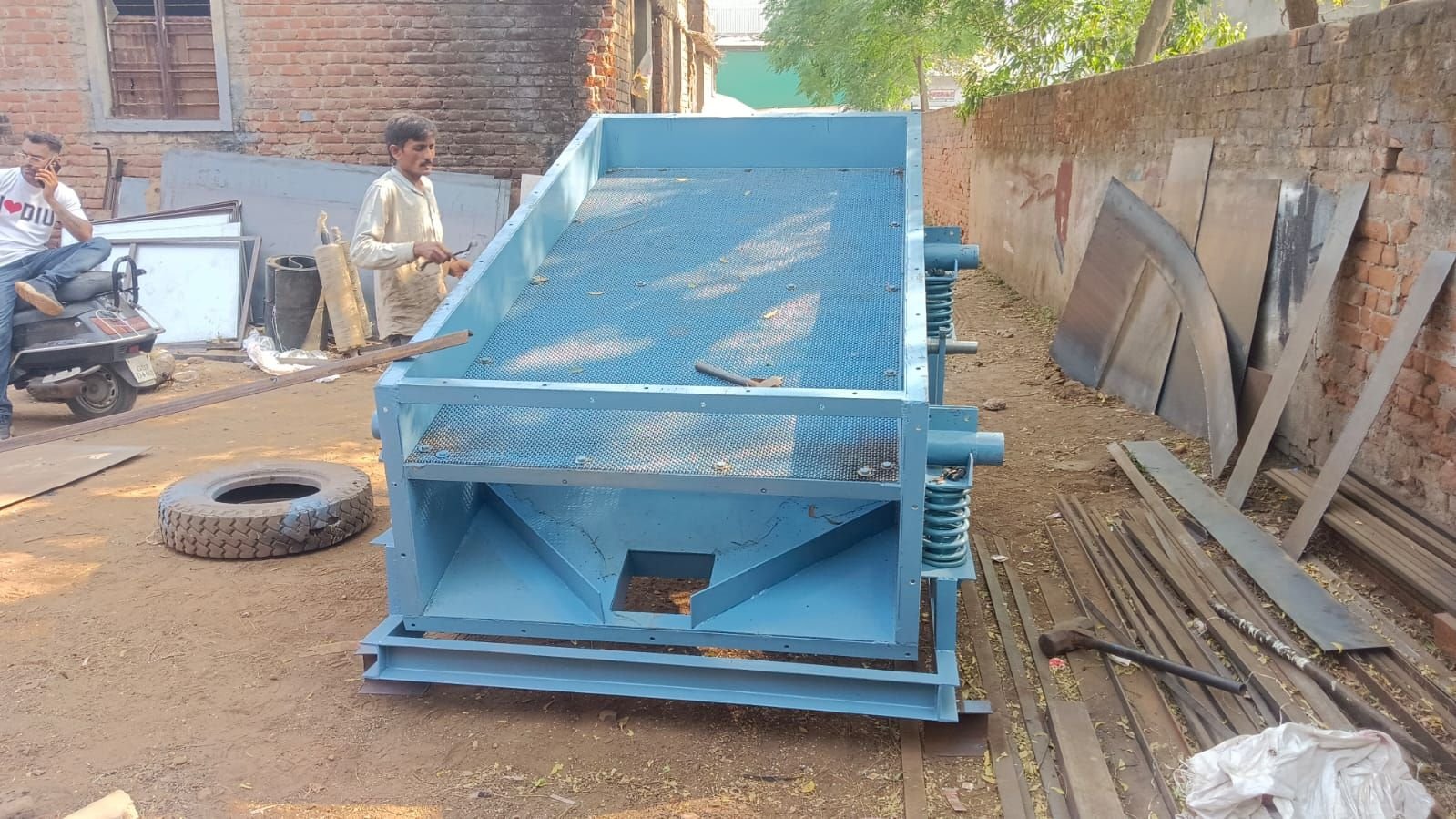

An Industrial Vibrating Screen is a mechanical screening equipment used to separate, classify, and filter materials based on particle size. It operates by generating vibrations through a motor, causing material to move across a screening surface (mesh or perforated plate), allowing smaller particles to pass through while larger ones are retained.

Working Principle

The vibrating screen uses an electric motor with an unbalanced shaft or vibrator motor to create oscillations. These vibrations:



• Move material forward on the screen surface


• Allow smaller particles to fall through openings


• Separate materials into different sizes efficiently

Types of Vibrating Screens



• Linear Vibrating Screen – Straight-line motion, suitable for fine screening


• Circular Vibrating Screen – Circular motion, used in mining and aggregates


• Multi-Deck Vibrating Screen – Multiple layers for grading different sizes


• High-Frequency Vibrating Screen – For precise and fine particle separation

Applications

Industrial vibrating screens are widely used in:



• Mining and quarry industries


• Coal and power plants


• Cement and construction materials


• Food processing and chemical industries


• Recycling and waste management
