Conveyor Machine

A belt conveyor system is a continuous material handling equipment used to transport bulk or packaged materials from one point to another efficiently and safely. It is widely used in industries like mining, cement, food processing, packaging, and manufacturing.

Basic Components of a Belt Conveyor System

1. Belt
   • The main moving part that carries material.
   • Made of rubber, PVC, fabric, or metal depending on application.
2. Drive Unit (Motor & Gearbox)
   • Provides power to move the belt.
   • Converts electrical energy into mechanical motion.
3. Pulleys
   • Drive pulley: rotates the belt.
   • Idler pulley: supports and guides the belt.

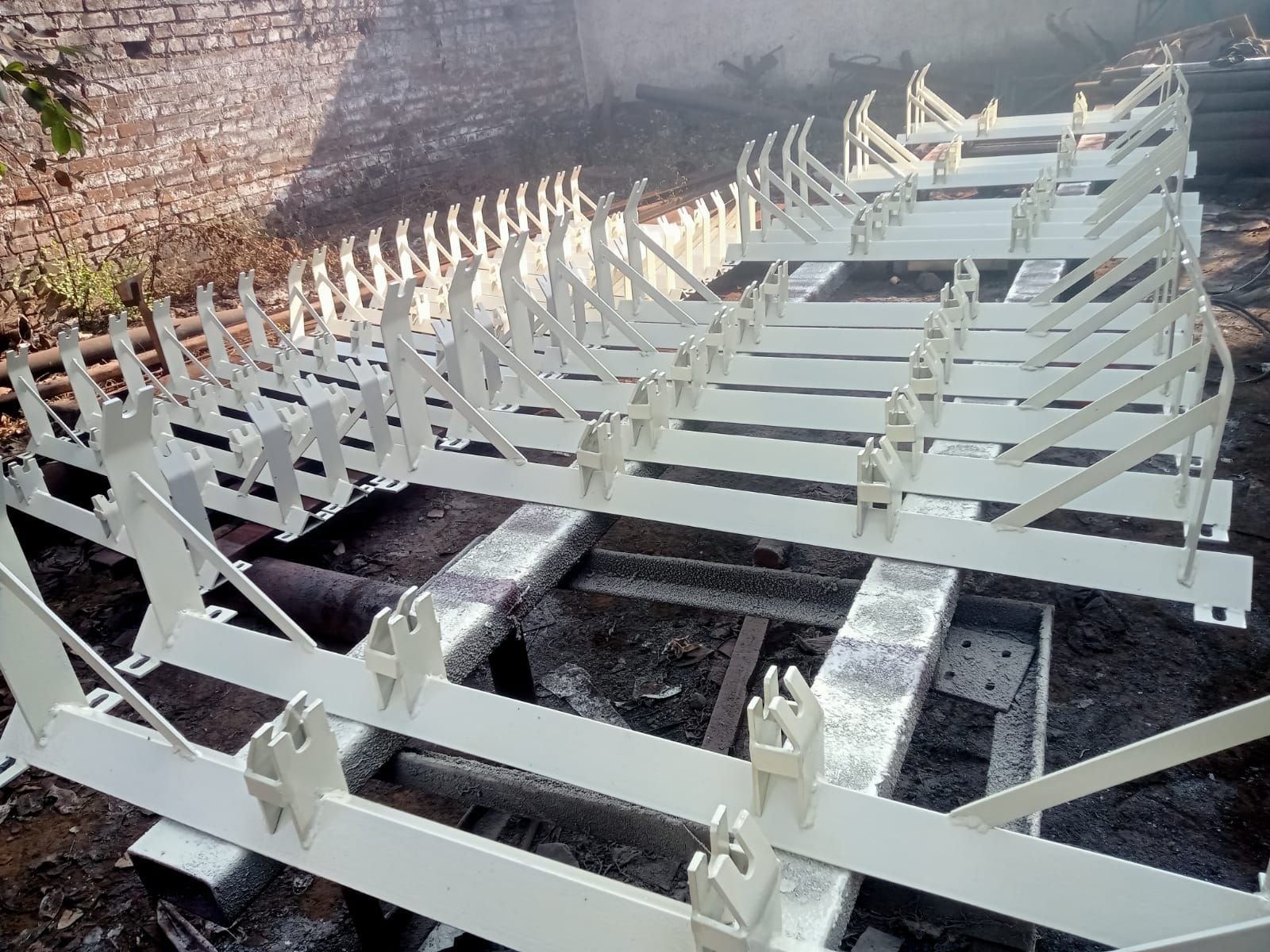

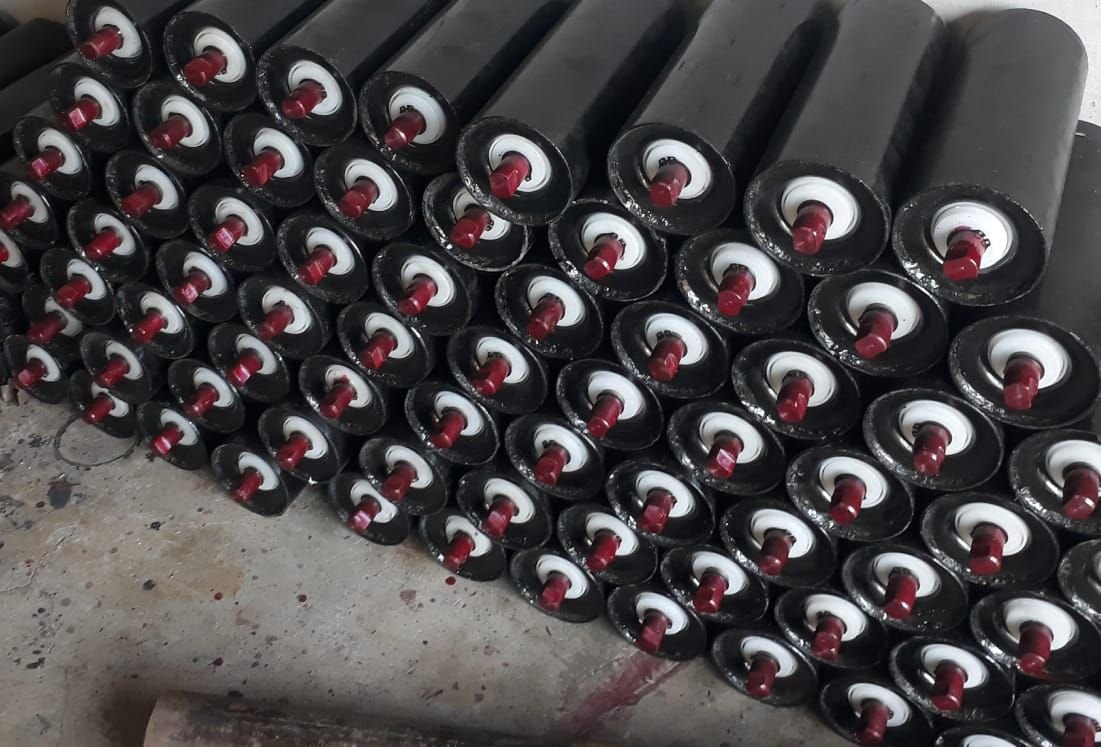

4. Idlers/Rollers
   • Support the belt and reduce friction during movement.
   • Types: carrying idlers, return idlers, impact idlers.

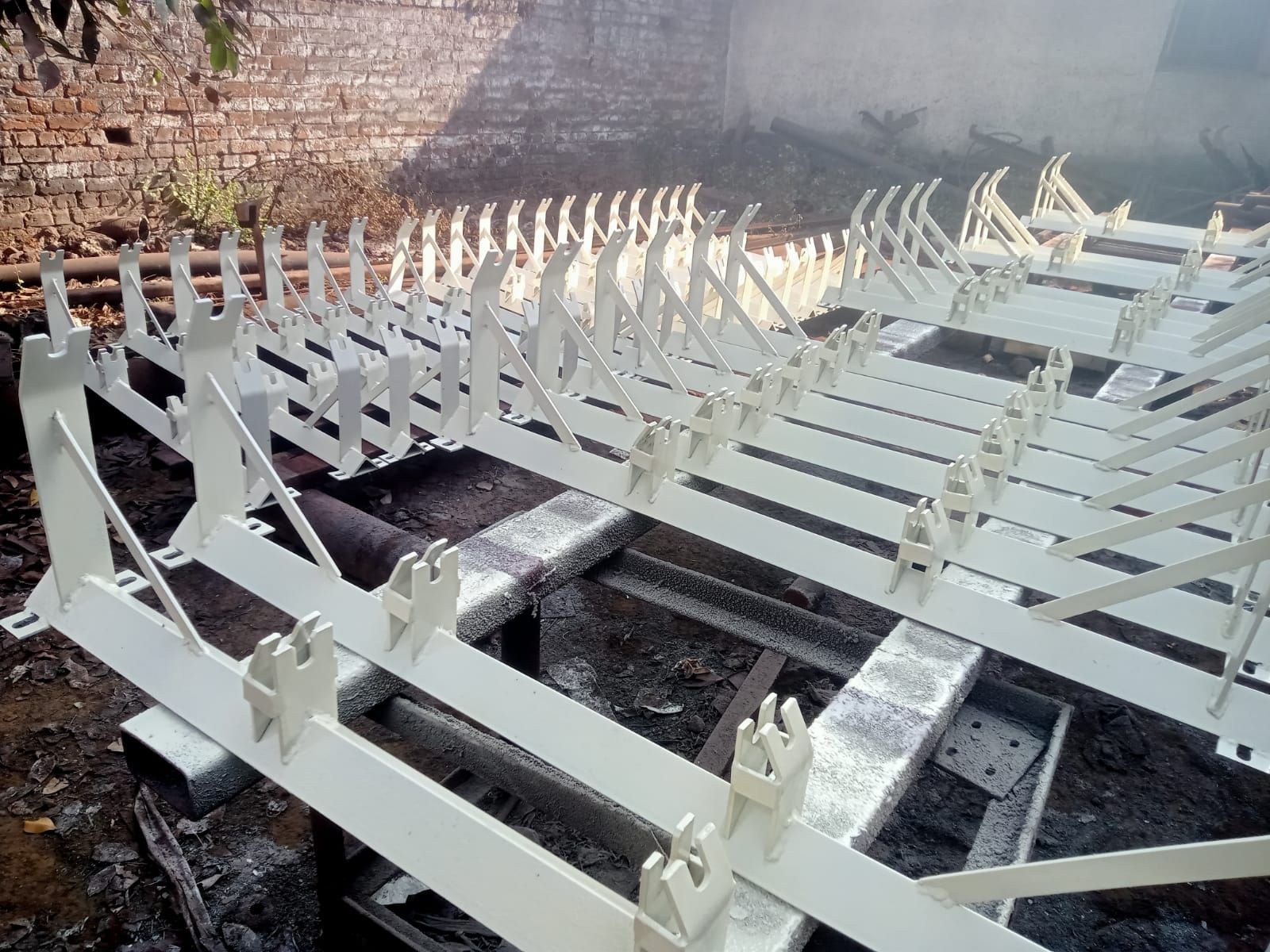

5. Frame/Structure
   • The supporting structure that holds all components.
6. Take-up System
   • Maintains proper tension in the belt.
   • Ensures smooth operation.

Types of Belt Conveyors

1. Flat Belt Conveyor – Used for general material transport.
2. Inclined/Declined Conveyor – Moves materials up or down slopes.
3. Trough Belt Conveyor – Used for bulk materials like coal, sand, grains.
4. Portable Conveyor – Movable and flexible for temporary setups.

1. Flat Belt Conveyor – Used for general material transport.
2. Inclined/Declined Conveyor – Moves materials up or down slopes.
3. Trough Belt Conveyor – Used for bulk materials like coal, sand, grains.
4. Portable Conveyor – Movable and flexible for temporary setups.

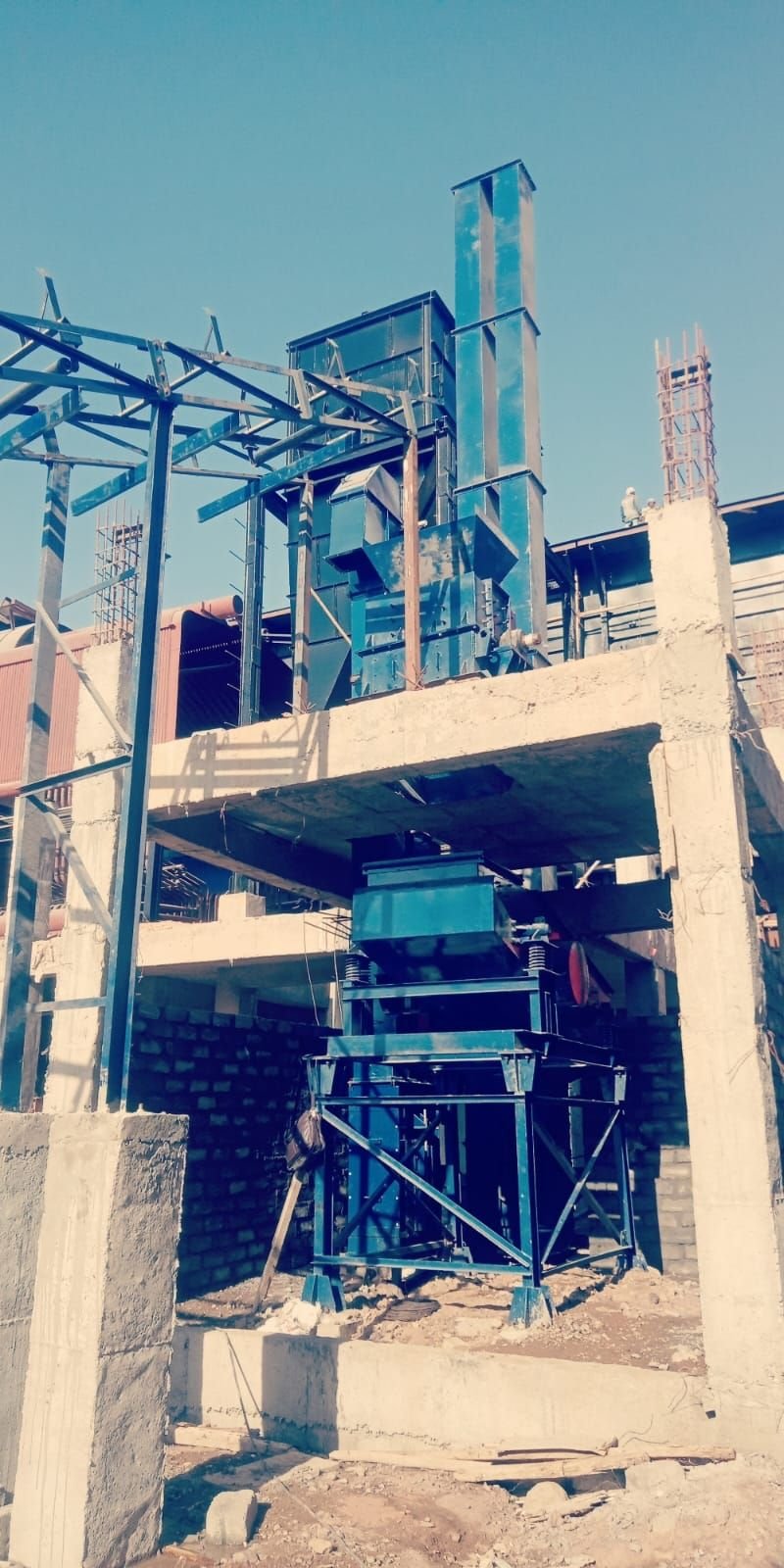

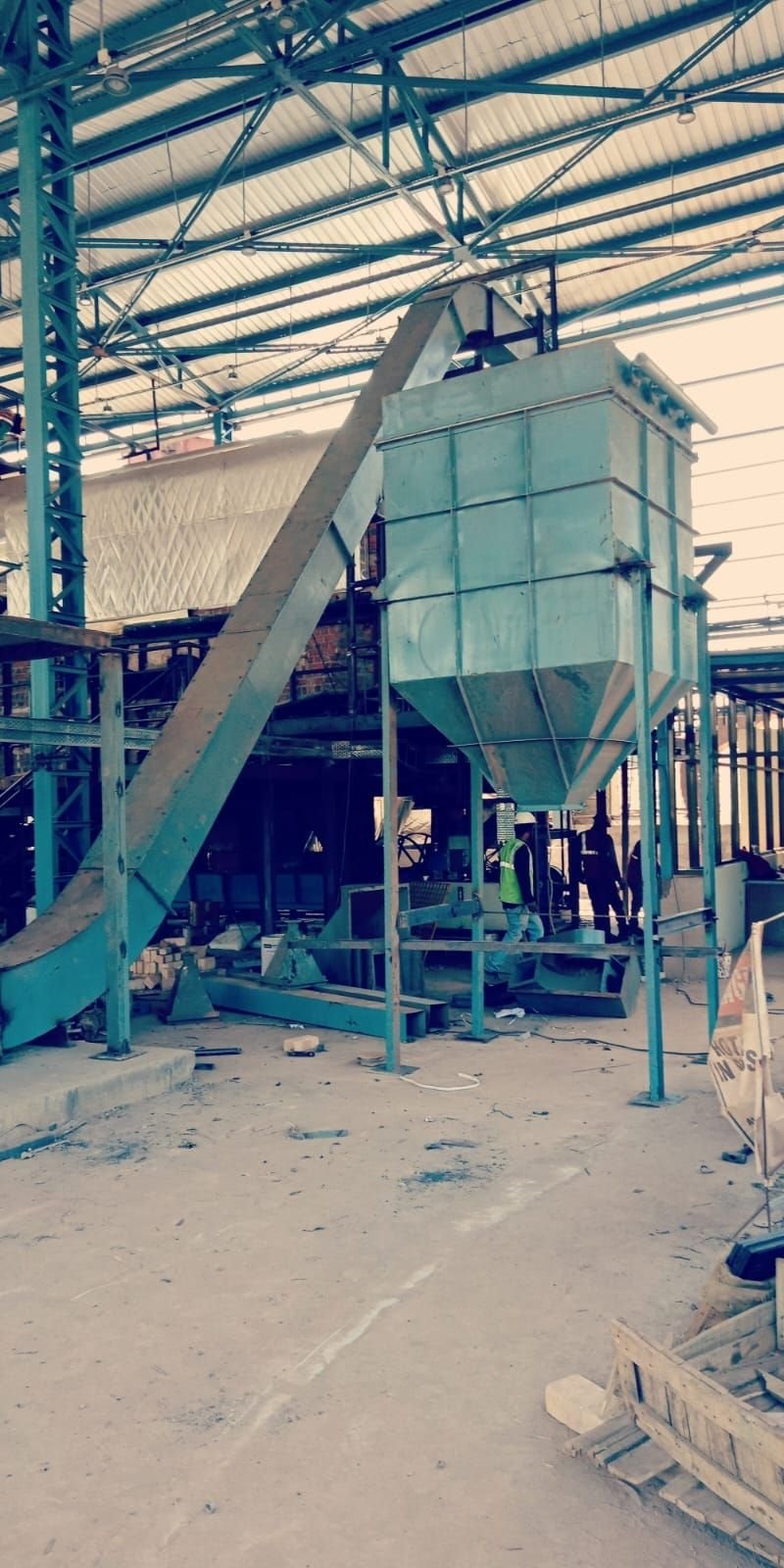

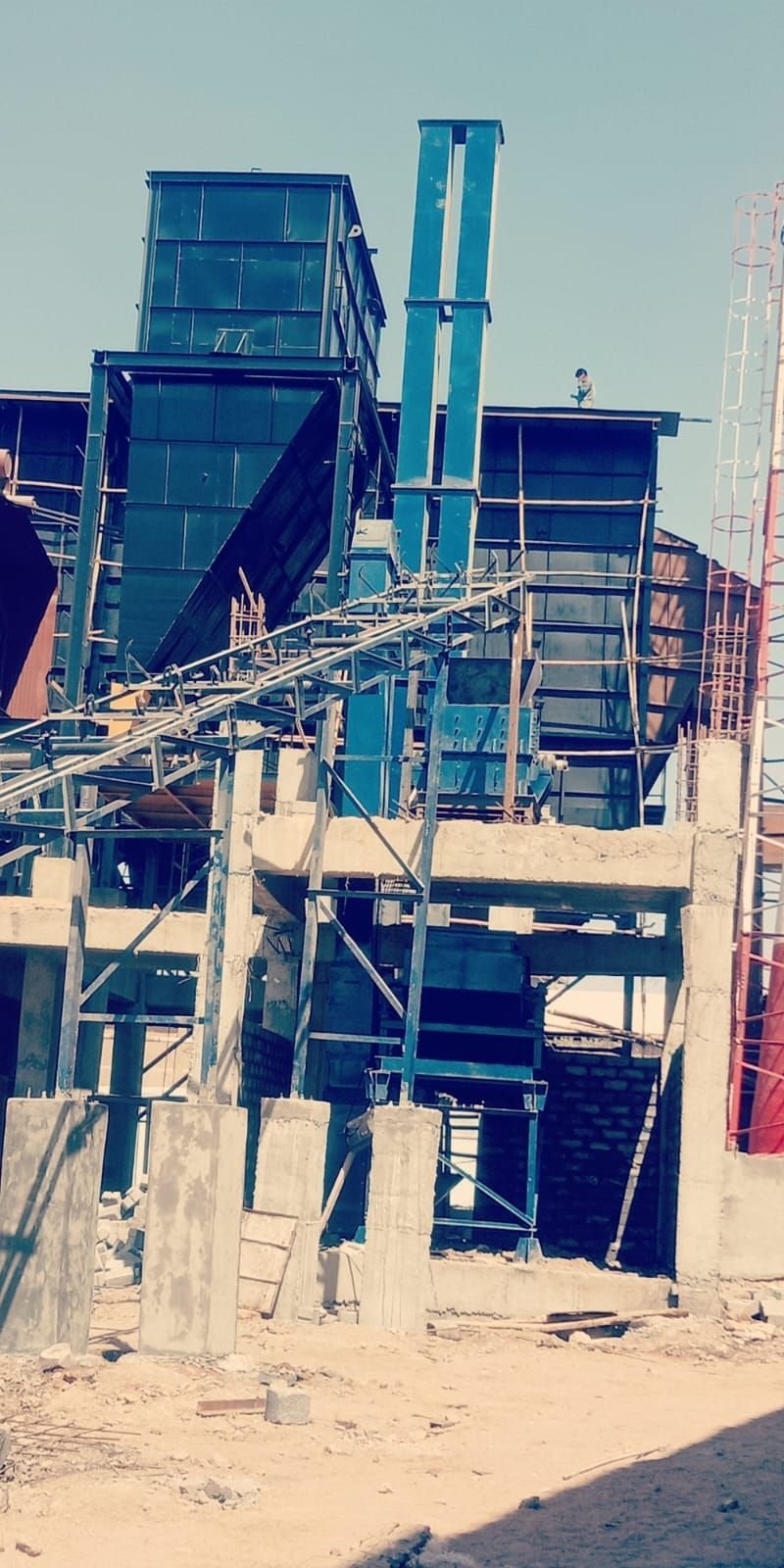

A Coal Handling System (CHS) is an integrated system used in industries like thermal power plants, cement plants, and steel industries to receive, store, process, and transport coal efficiently and safely. It ensures a continuous supply of properly sized coal to the required process.

 Main Components of Coal Handling System
1. Coal Receiving System

• Coal is delivered by trucks, wagons, or ships


• Equipment used:



  • Wagon tippler / truck tippler


  • Track hopper





2. Feeding System

• Controls the flow of coal to conveyors


• Equipment:



  • Vibrating feeders


  • Apron feeders





3. Crushing System

• Reduces coal size to required dimensions


• Equipment:



  • Coal crusher (hammer mill / ring granulator)





4. Screening System

• Separates coal based on size


• Equipment:



  • Vibrating screens





5. Conveying System

• Transfers coal from one point to another


• Equipment:



  • Belt conveyors

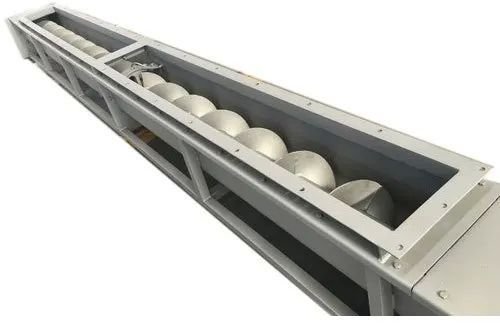

  • Screw conveyors (in some cases)





6. Stacking & Storage

• Stores coal for future use


• Equipment:



  • Stacker


  • Reclaimer


  • Storage yard / bunkers





7. Dust Suppression System



• Controls pollution during handling


• Equipment:




• Water spray system


• Dust extraction units



Applications



• Thermal Power Plants


• Cement Plants


• Steel Plants


• Mining Industries

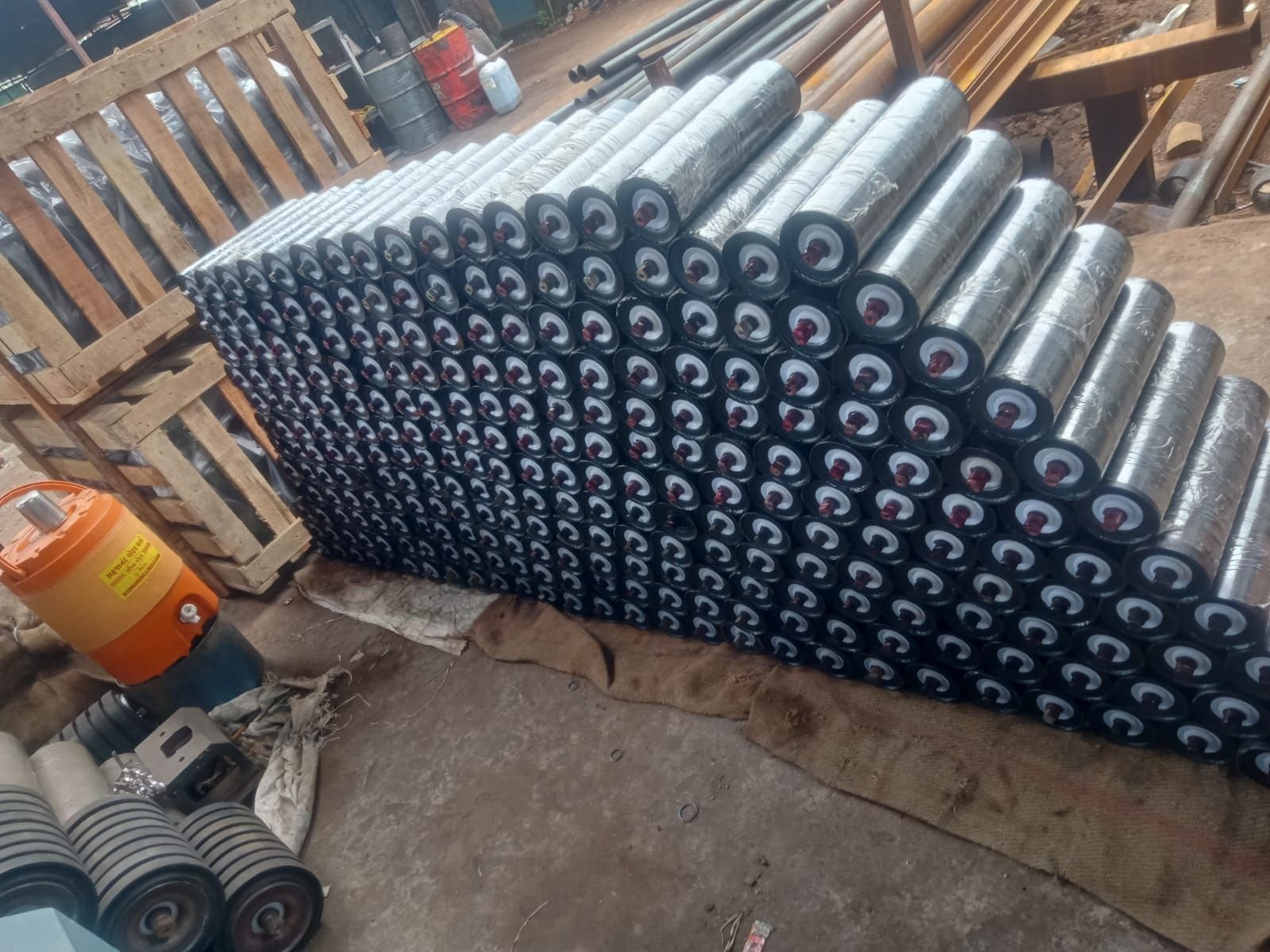

Conveyor systems are made up of several essential components that work together to transport materials efficiently and safely in industries such as mining, manufacturing, food processing, and logistics.

Main Conveyor Components 1. Conveyor Belt



The conveyor belt is the primary carrying medium of the system. It moves materials from one point to another and is typically made from rubber, PVC, or fabric depending on the application.





Use for can transport

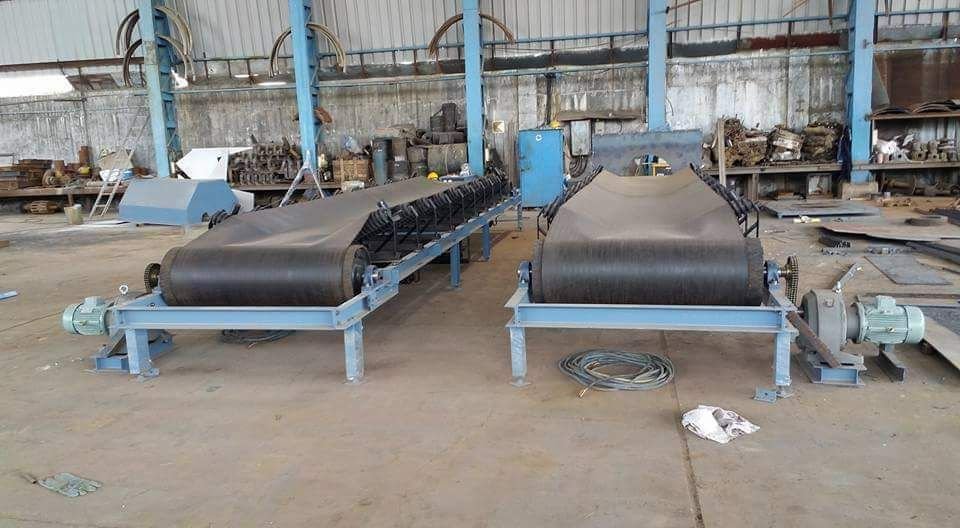

An Industrial Belt Conveyor System is a widely used material handling solution designed to transport bulk materials or packaged goods efficiently over short or long distances. It consists of a continuous moving belt that rotates over rollers and pulleys, powered by a motor.

Key Components



• Belt: The main moving surface, usually made of rubber, PVC, or fabric.


• Drive Unit: Motor with gearbox that powers the conveyor.


• Pulleys: Drive pulley and tail pulley to guide and move the belt.


• Idlers/Rollers: Support the belt and reduce friction.


• Frame/Structure: Steel structure supporting the entire system.


• Take-Up Unit: Maintains proper belt tension.

Key Components



• Belt: The main moving surface, usually made of rubber, PVC, or fabric.


• Drive Unit: Motor with gearbox that powers the conveyor.


• Pulleys: Drive pulley and tail pulley to guide and move the belt.


• Idlers/Rollers: Support the belt and reduce friction.


• Frame/Structure: Steel structure supporting the entire system.


• Take-Up Unit: Maintains proper belt tension.

Applications



• Mining and quarry industries (coal, sand, minerals)


• Cement and construction plants


• Food processing industries


• Warehousing and logistics


• Packaging and assembly lines

Types of Belt Conveyors

• Flat Belt Conveyor


• Inclined Belt Conveyor


• Chevron Belt Conveyor


• Roller Bed Conveyor


• Portable Conveyor

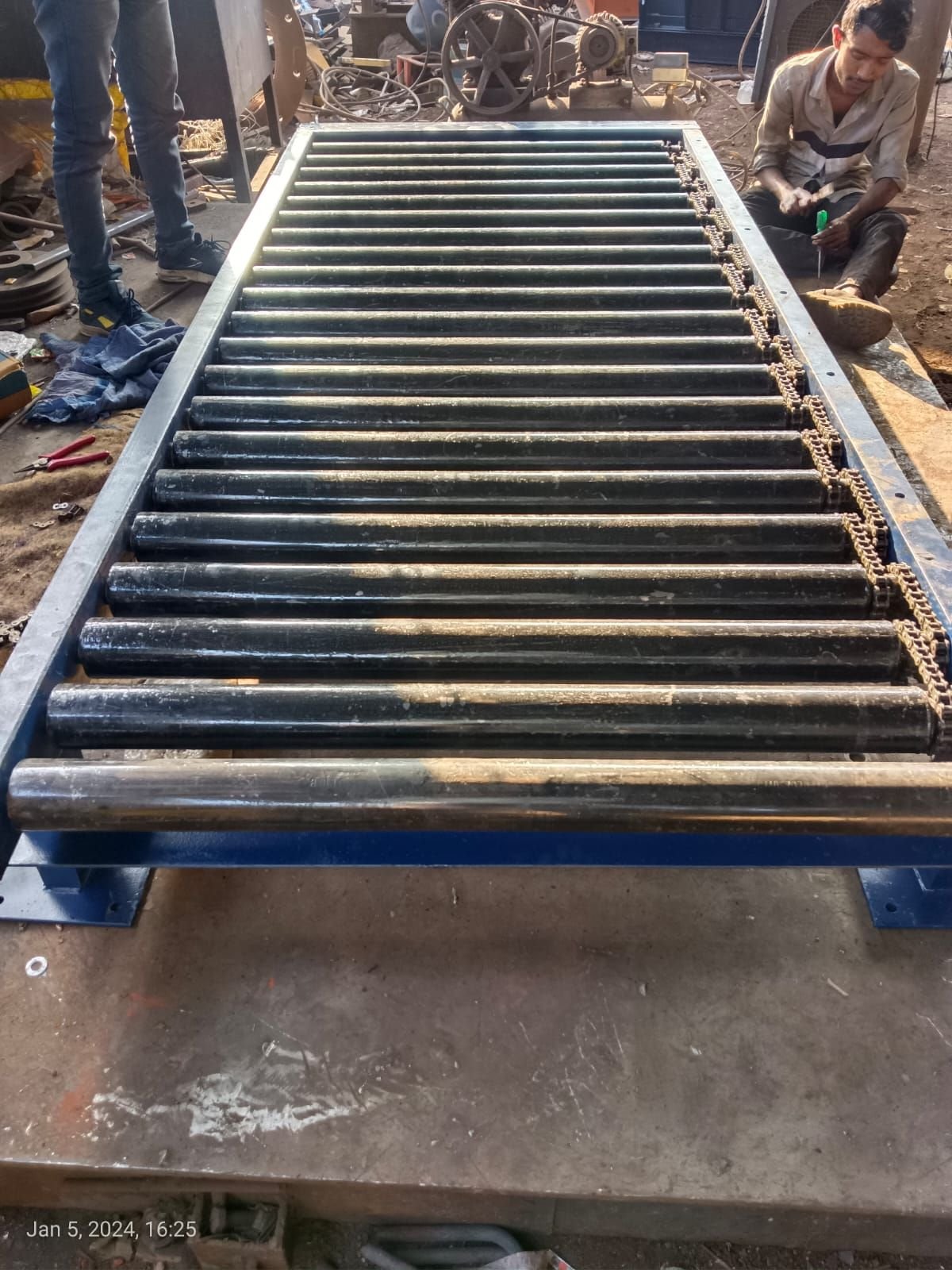

A Gravity Roller Conveyor is a simple and cost-effective material handling system that uses gravity or manual force to move products along a series of rollers. Unlike powered conveyors, it does not require electricity, making it ideal for lightweight to medium-duty applications.

Working Principle



Gravity roller conveyors operate on a slight incline or rely on manual pushing. When a load (like boxes, cartons, or pallets) is placed on the rollers, it moves forward due to gravitational pull or applied force

 Key Components



• Rollers – Cylindrical tubes (steel, aluminum, or PVC) that carry the load


• Frame – Structure that supports the rollers


• Side Channels – Provide alignment and support


• Bearings – Ensure smooth roller rotation


• Supports/Legs – Maintain height and inclination

Advantages

• No power required – Saves energy and cost


• Low maintenance – Simple design with fewer moving parts


• Easy installation – Quick setup and relocation


• Flexible design – Can be straight or curved


• Cost-effective – Ideal for budget-friendly operations

Types of Gravity Roller Conveyors

• Straight Roller Conveyor


• Curved Roller Conveyor


• Expandable/Flexible Roller Conveyor

Applications

• Warehouses and distribution centers


• Packaging and assembly lines


• Truck loading and unloading


• E-commerce logistics


• Airport baggage handling

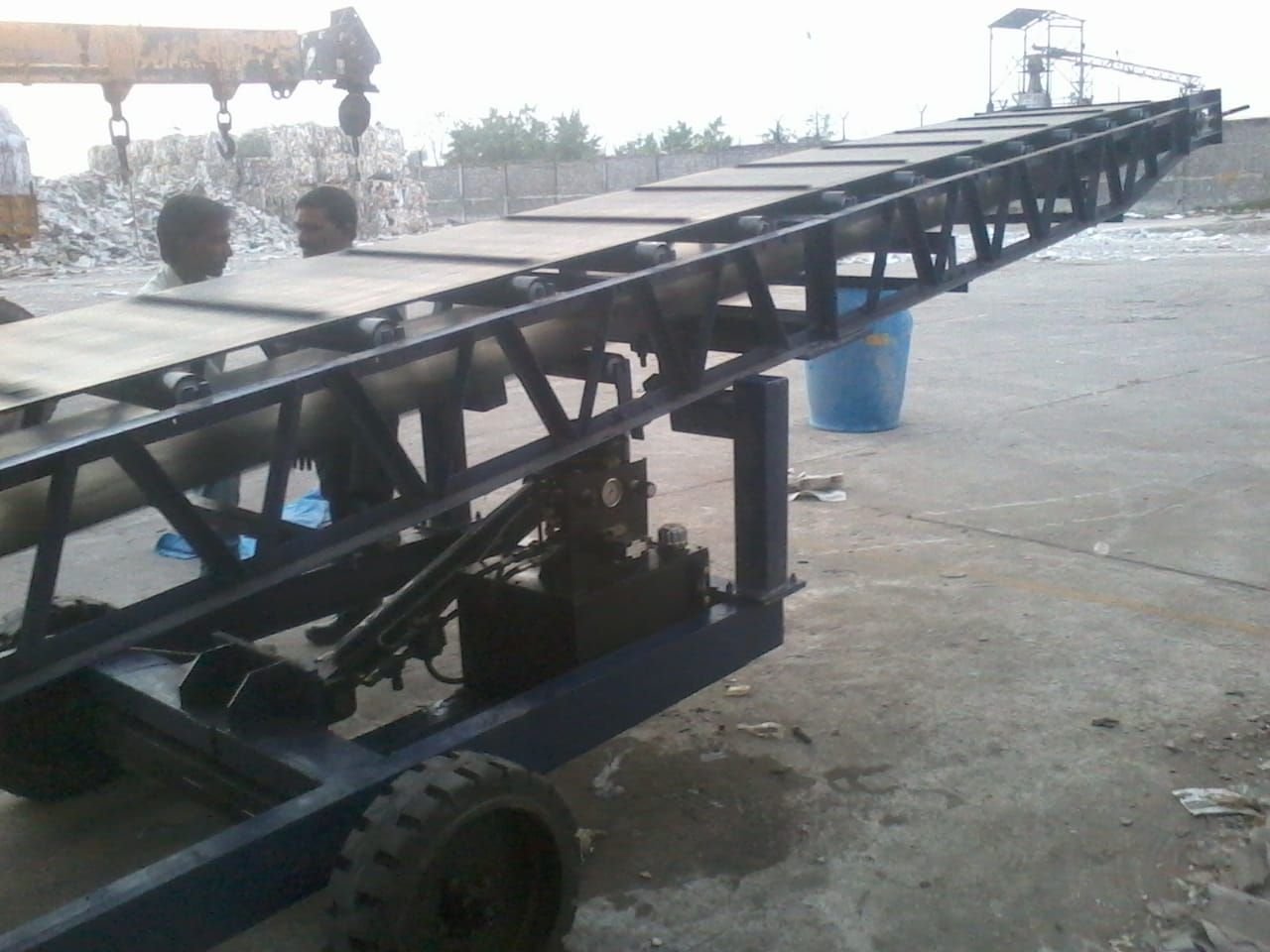

A Stacker Conveyor System is a type of bulk material handling equipment used to transport and stack materials like coal, sand, gravel, cement, fertilizer, and ores into organized stockpiles. These conveyors are widely used in industries such as mining, construction, ports, power plants, and warehouses

Key Components



• Conveyor Belt: Carries material continuously


• Drive Unit (Motor & Gearbox): Powers the system


• Truss/Frame: Structural support of the conveyor


• Idlers & Rollers: Support smooth belt movement


• Discharge Boom: Directs material for stacking


• Radial Wheel / Pivot: Allows rotation for wider stockpile coverage


• Control Panel: Operates and monitors the system

Working Principle

Material is fed onto the conveyor belt from a feeder or hopper. The belt moves the material to the discharge end, where it is stacked in piles. Advanced systems can rotate (radial stacker) or extend (telescopic stacker) to create larger and more uniform stockpiles without manual handling.

Applications



• Mining and quarry operations


• Cement and power plants


• Ports and ship loading/unloading


• Agriculture (grain handling)


• Construction material yards

We are a leading Manufacturer, Exporter, and Supplier offering a state-of-the-art Vertical Bucket Elevator. This new equipment features an Electric Driven Type, Semi Automatic Automatic Grade, and a power range of 3-20 H.P. Ideal for various industries, our Vertical Bucket Elevator ensures efficient material handling with precision and reliability. Upgrade your operations with this innovative solution that combines performance and durability. Contact us today to elevate your productivity to new heights!

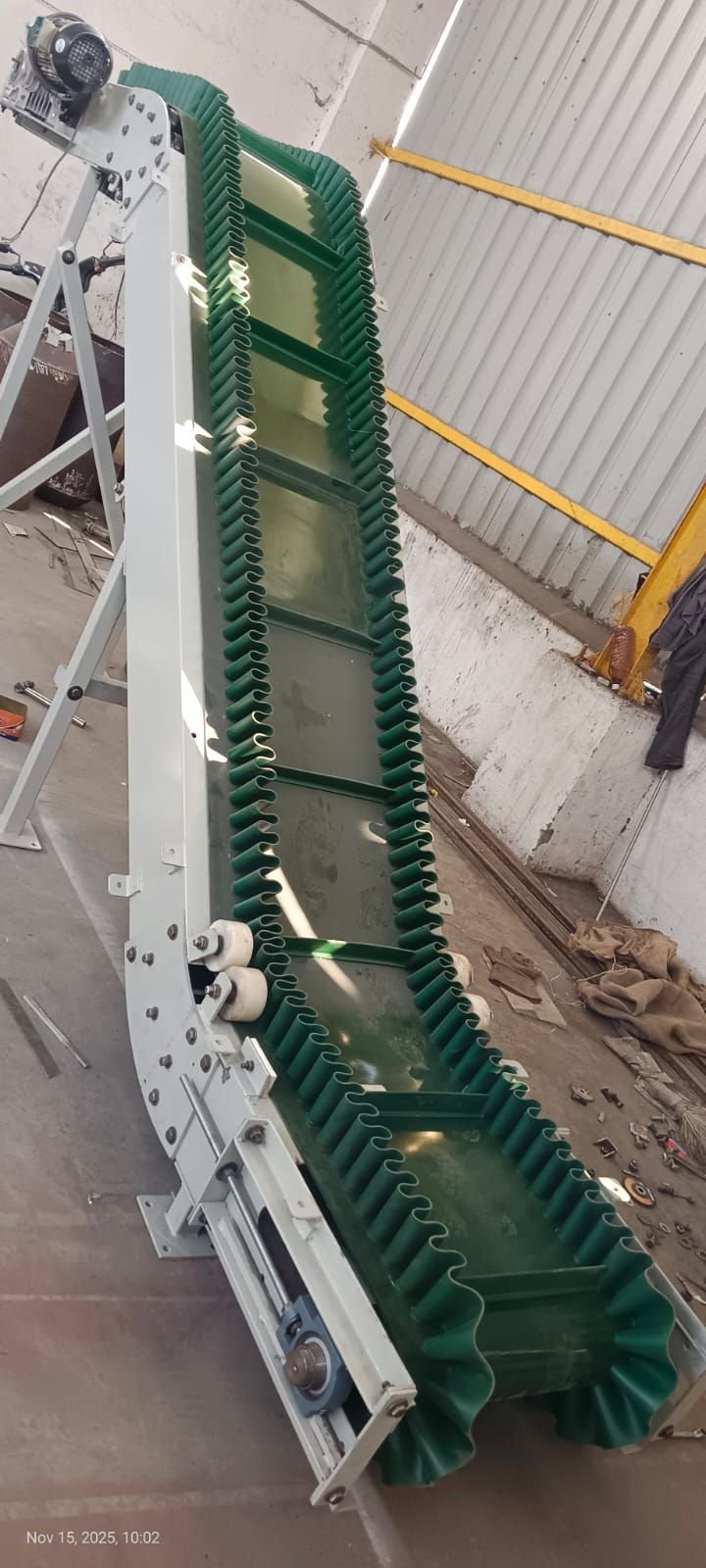

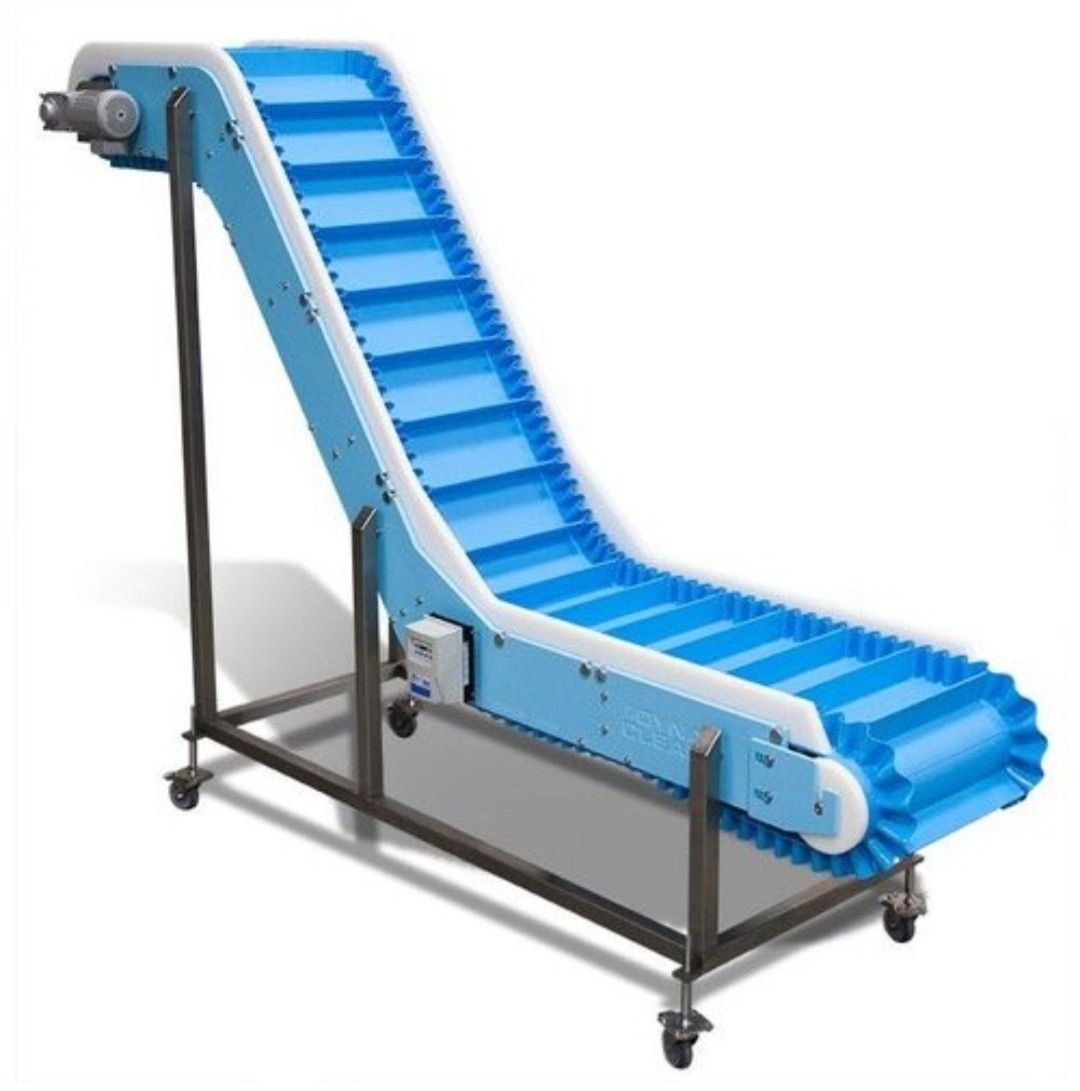

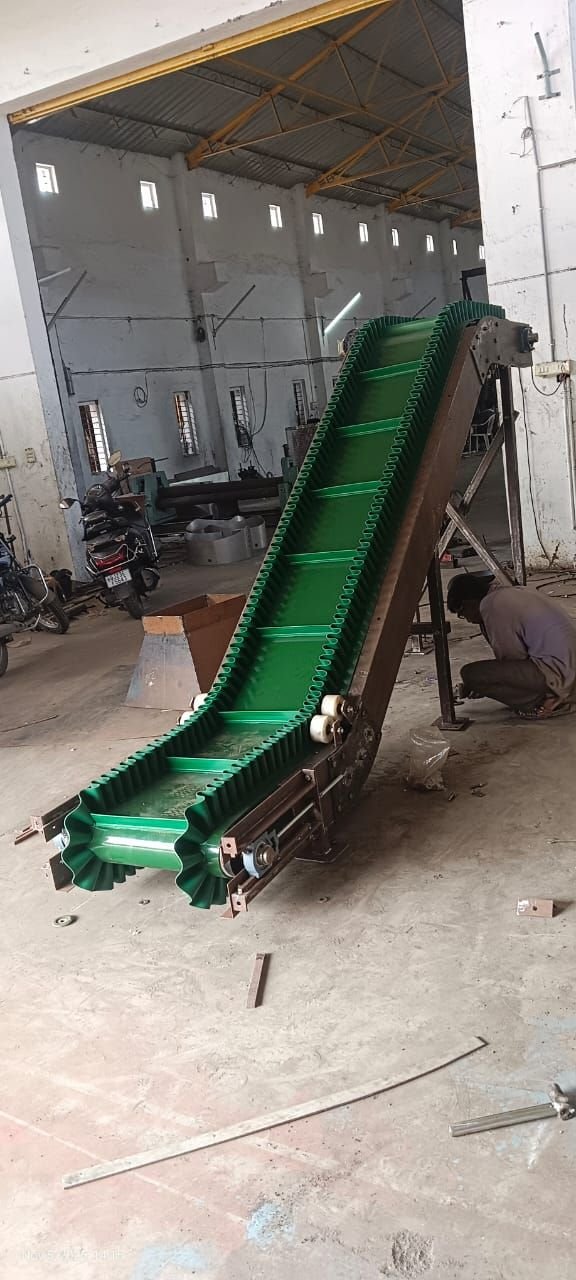

A Z Type Inclined Belt Conveyor is a specialized material handling system designed to transport bulk or packed materials vertically and horizontally in a “Z” shaped path. It is widely used in industries where space is limited and materials need to be moved to different heights efficiently.

 Working Principle

The conveyor consists of three sections:

• Horizontal feeding section (bottom)


• Inclined middle section


• Horizontal discharge section (top)



Materials are loaded at the lower end, carried upward through the inclined section using a belt with cleats or sidewalls, and then discharged at the top level.



Key Components



• Belt (Flat or Cleated) – Prevents material slipping during incline


• Drive Unit (Motor & Gearbox) – Powers the belt movement


• Pulleys & Rollers – Support smooth belt rotation


• Frame Structure – Robust steel construction


• Side Walls / Cleats – Helps in carrying bulk material without spillage

Applications



• Food processing industries


• Packaging and bottling plants


• Agriculture (grains, seeds)


• Warehousing and logistics


• Chemical and pharmaceutical industries
