Z Type Inclined Belt Conveyor

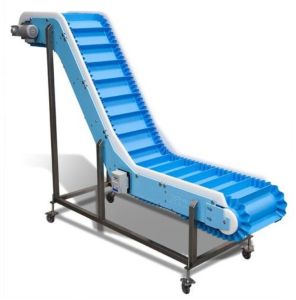

A Z Type Inclined Belt Conveyor is a specialized material handling system designed to transport bulk or packed materials vertically and horizontally in a “Z” shaped path. It is widely used in industries where space is limited and materials need to be moved to different heights efficiently.

The conveyor consists of three sections:

• Horizontal feeding section (bottom)
• Inclined middle section
• Horizontal discharge section (top)

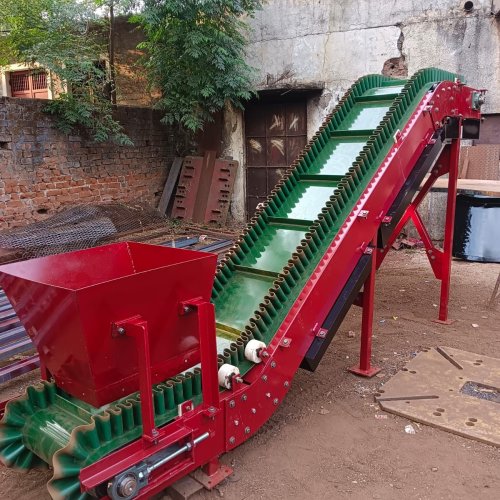

Materials are loaded at the lower end, carried upward through the inclined section using a belt with cleats or sidewalls, and then discharged at the top level.

• Belt (Flat or Cleated) – Prevents material slipping during incline
• Drive Unit (Motor & Gearbox) – Powers the belt movement
• Pulleys & Rollers – Support smooth belt rotation
• Frame Structure – Robust steel construction
• Side Walls / Cleats – Helps in carrying bulk material without spillage

• Food processing industries
• Packaging and bottling plants
• Agriculture (grains, seeds)
• Warehousing and logistics
• Chemical and pharmaceutical industries
